Name: Zkd Digital Circuit Breaker Vacuum Degree Tester
Brand: Delta
Price: 1.0 USD

Brand Name : Delta

Model Number : ZKD

Certification : ISO9001

Place of Origin : China

MOQ : 1 set Vacuum Degree Tester

Price : USD1.0

Payment Terms : T/T, Western Union

Supply Ability : 1000 sets per month

Delivery Time : 10 days

Packaging Details : Zkd Digital Circuit Breaker Vacuum Degree Tester packed in veneer case

Item Name : Zkd Digital Circuit Breaker Vacuum Degree Tester

Functions : Measure Vacuum Degree of Vacuum Switch Interrupt

Applicable switches : Vacuum switchgeaVacuum switchgearr

Detection range : 10 -5 -10 -1 Pa

Dimension : 420 × 320 × 280 (mm)

Weight : 12kg

Power supply : AC220V ± 10%, 50Hz/60Hz

Warranty : One year

Service : OEM service is available

Contact Now

Introduction:

Zkd Digital Circuit Breaker Vacuum Degree Tester can direct quantitative measuring vacuum degree of vacuum switch interrupter without removing. It can not only measure the normal range of vacuum degree of switchgear, but also can measure some vacuum switches which leak faster. Comparing with the measuring results of past years, its life can generally be inferred, prevent accidents.
Zkd Digital Circuit Breaker Vacuum Degree Tester is compact, lightweight and compact models, short test time, reliable measurement results, good stability, high precision, fully functional.
Zkd Digital Circuit Breaker Vacuum Degree Tester is the ideal instrument for quantitative measuring vacuum switches.

Parameters:

1	Detection objects	various models of vacuum switch
2	Detection method	using new excitation coil and detect vacuum tube without disassembly
3	Application area	This instrument is a all-purpose type, can measure the vacuum of variety models of open magnetic vacuum tube
4	Detection range	10 -5 -10 -1 Pa
5	Measurement accuracy	10 -5 -10 -4 Pa, 10% 10 -4 -10 -3 Pa, 10% 10 -3 -10 -2 Pa, 10% 10 -2 -10 -1 Pa, 10%
6	Magnetic field voltage	1700V
7	High-voltage of pulsed electric field	30KV
8	Open distance of switch tube in vacuum test	normal open distance
9	Testing environment	-20℃~ 40℃
10	Weight	12kg
11	Dimension	420 × 320 × 280 (mm)
12	Sampler	magnetic coil

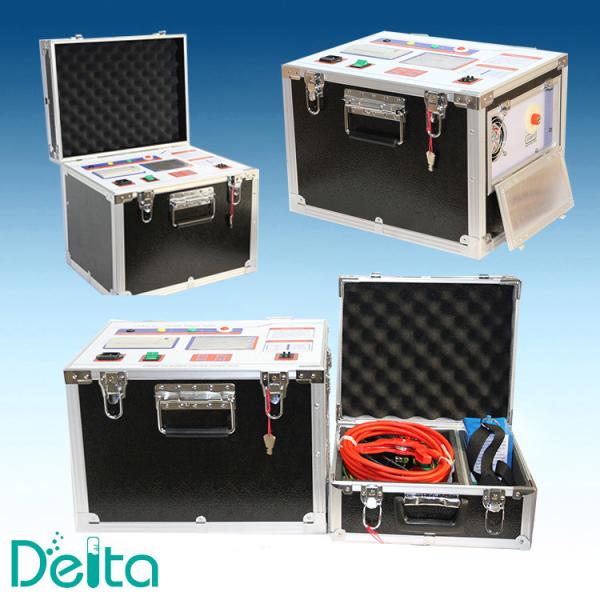

Zkd Digital Circuit Breaker Vacuum Degree Tester Real Picture:
